telescopic lifter

A lightweight lifter designed for easy handling.

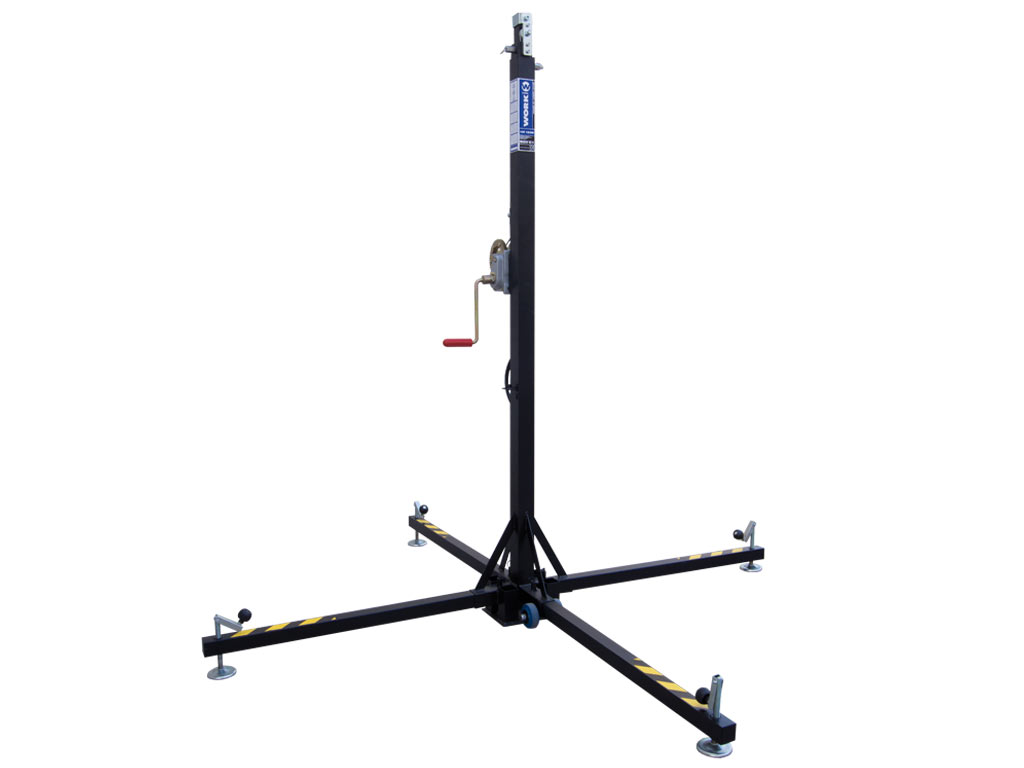

LW 150 R is a telescopic tower made of three extensible steel profiles with a high traction resistant cable. A pulley with auto-lubricated bearing system guides the cable for a safe fold/unfold operation.

All the mobile system is fixed with safety fastener locks that are necessary to bear lifter strain.

LW 150 R also features adjustable stabilizers on its legs, bubble level and two wheels below the winch. It has been dunked into a melting bath of zinc for a durable protection against corrosion and oxidation.

Available in black finish





Three extensible steel profiles.
Two wheels at the base of the lifter + handle for a convenient transport.
Dunked into a melting bath of zinc for a durable protection against corrosion and oxidation.
35 mm diameter / suitable with many accessories.
Colour available: Black.
The high quality automatic brake winch has been designed according to the VGB 8/10.93 norm and TÜV 9591009 certification.
For more convenience during transport, stabilizer legs are put in the space provided.

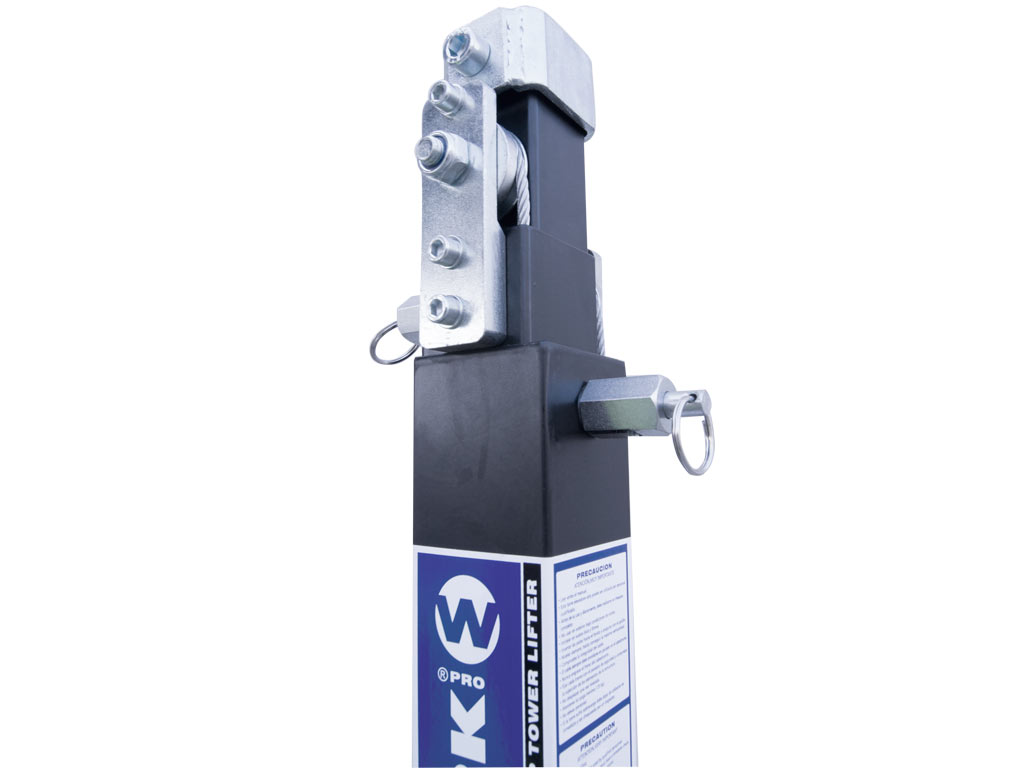

Pulley system and safety pin on each section. Vertex with reinforcement.
High resistance stabilizer legs with rubber made base.
LW 150 R features a bubble level vial, useful to balance the lifter and ensures vertical lifting, protecting load from inadvertent movements.

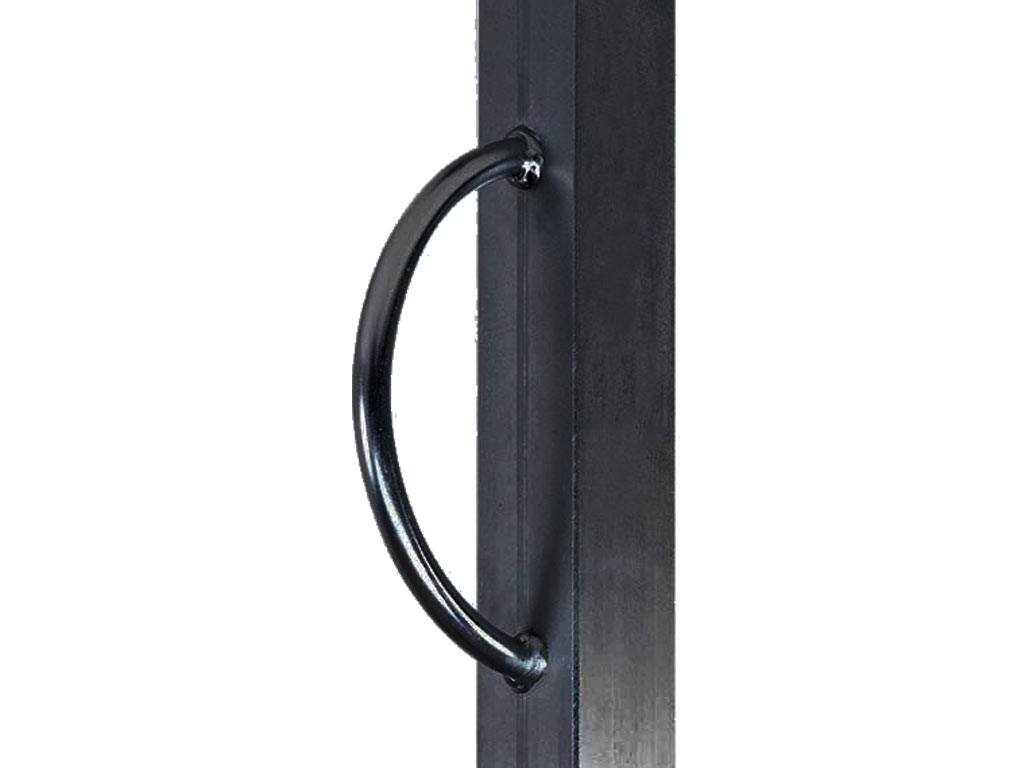

Handle located on the body of this lightweight lifter for transport.
Two wheels at the base of the lifter allow an easy transport.


Weight: 32.8 kg (72.31 Lb).
Min load: 25 kg (55.12 Lb).
Max load: 100 kg (220.46 Lb).
Min height: 1.90 m (6.23 ft).
Max height: 5 m (16.4 ft).
Unfolded base: 1.46 x 1.46 m (4.79 x 4.79 ft).
Folded base: 0.36 x 0.36 m (1.18 x 0.18 ft).

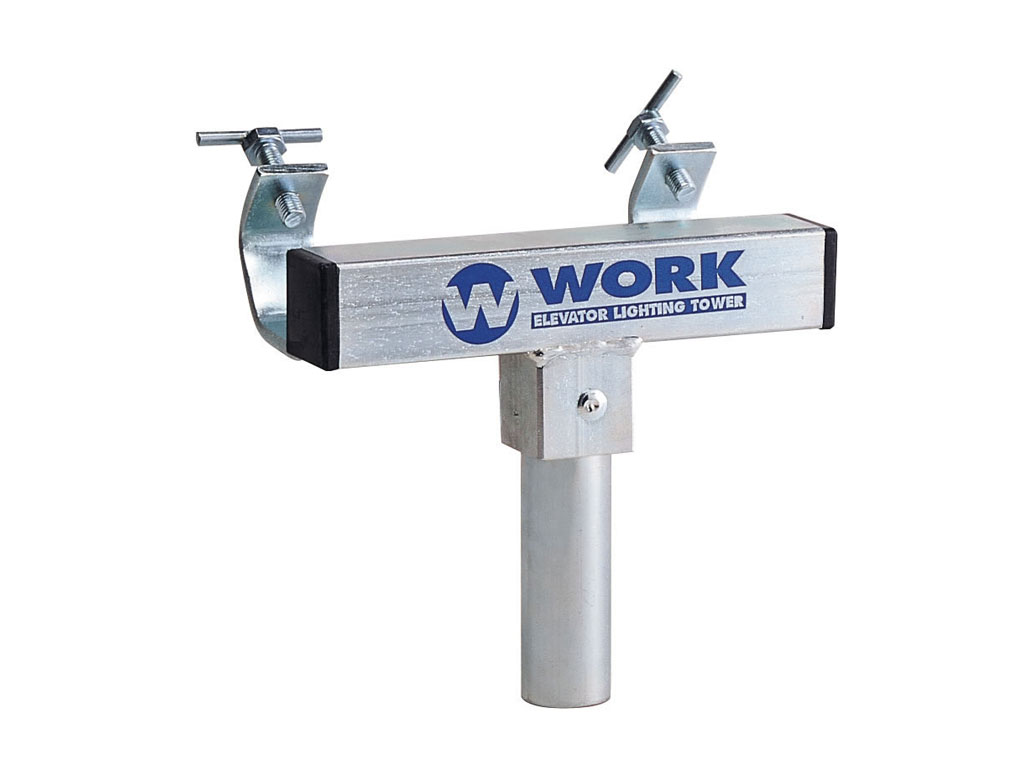

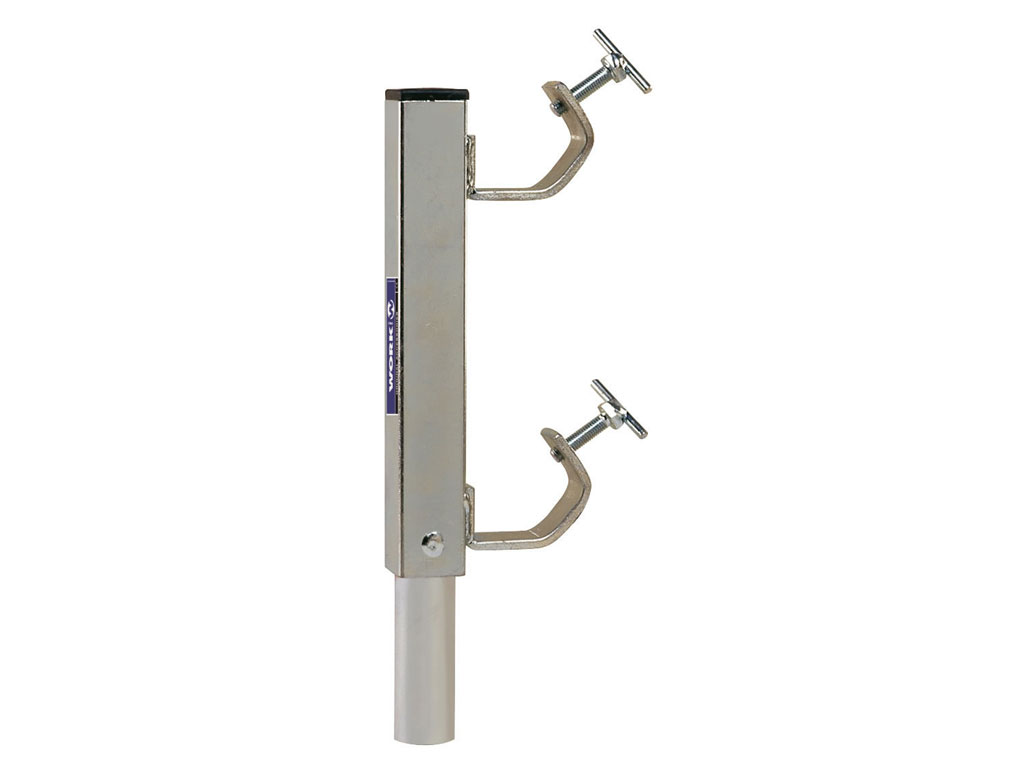

Accessories:AW 135 / AW 235 / AW 335 / AW 535 / AW 435 / AW 10.

Cable:
Composition: 4 x 19 +1.
Diameter: 4 mm.
Resistance: 1770 N / mm2.
Winch:
Drum diameter capacity: 38 mm.
Reduction range: 2.5 : 1.
Norms and certifications:
Lifter: CE; BGV C1.
Winch: 2006/43 EG; EN 1357; EN 12100.
